Transmon Analytics#

This demo notebook demonstrates how to use the transmon_analytics.py file to create plots of the transmon qubit Cooper pair box eigenvalues as a function of offset charge (ng). These plots can be found the original transmon qubit paper (J. Kock et al., Phys. Rev. A 76, 042319 (2007).) Here we consider the first four energy levels (m=0 through m=3) as a function of offset charge for the case where the ratio of Josephson to charing energy is equal to one (\(E_{J} / E_{C} = 1.0\).)

[1]:

import qiskit_metal as metal
from qiskit_metal.analyses.hamiltonian.transmon_analytics import *

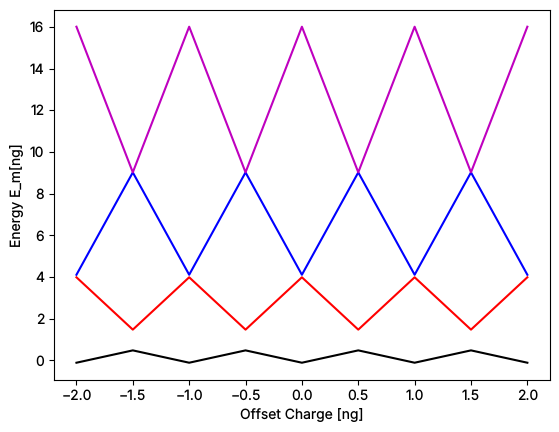

The function which actually creates the plots is called “plot_eigenvalues” and it does not take any arguments. So, we can create the plot(s) simply by executing the following command:

[2]:

plot_eigenvalues()

The plots can be made for higher energy levels and/or for different ratios of \(E_{J}/E_{C}\) by directly modifying those parameters in the file transmon_analytics.py
