Orbital rotations

The orbital rotation is a fundamental operation in the simulation of fermions. This page discusses orbital rotations and their properties.

Definition of orbital rotation

Description via a unitary matrix

An orbital rotation is described by an \(N \times N\) unitary matrix \(\mathbf{U}\) (here \(N\) is the number spatial orbitals), and we denote the corresponding operator as \(\mathcal{U}\). This operator has the following action on the fermionic creation operators \(\set{a^\dagger_{\sigma, i}}\):

\[\begin{align*} \mathcal{U} a^\dagger_{\sigma, i} \mathcal{U}^\dagger = \sum_j \mathbf{U}_{ji} a^\dagger_{\sigma, j}. \end{align*}\]

That is, \(a^\dagger_{\sigma, i}\) is mapped to a new operator \(b^\dagger_{\sigma, i}\) where \(b^\dagger_{\sigma, i}\) is a linear combination of the operators \(\set{a^\dagger_{\sigma, i}}\) with coefficients given by the \(i\)-th column of \(\mathbf{U}\). The fact that \(\mathbf{U}\) is unitary can be used, together with the fermionic anticommutation relations, to show that the \(\set{b^\dagger_{\sigma, i}}\) also satisfy the fermionic anticommutation relations. Thus, the \(b^\dagger_{\sigma, i}\) are creation operators in a rotated basis of orbitals.

Explicit expression

It is a theorem that \(\mathcal{U}\) can be written explicitly as

\[\begin{align*} \mathcal{U} = \prod_{\sigma} \exp\left[\sum_{ij} \log\left(\mathbf{U}\right)_{ij} a^\dagger_{\sigma, i} a_{\sigma, j}\right] \end{align*}.\]

Sometimes, it is useful to specify the orbital rotation via the antihermitian matrix \(\mathbf{K} = \log(\mathbf{U})\) rather than \(\mathbf{U}\) itself. However, ffsim generally represents orbital rotations using the unitary matrix \(\mathbf{U}\).

Homomorphism property

The mapping \(\mathbf{U} \mapsto \mathcal{U}\) satisfies the important homomorphism property:

\[\begin{split}\begin{align*} \mathbf{U}^\dagger &\mapsto \mathcal{U}^\dagger, \\ \mathbf{U}_1 \mathbf{U}_2 &\mapsto \mathcal{U}_1 \mathcal{U}_2 \end{align*}\end{split}\]

for any unitary matrices \(\mathbf{U}\), \(\mathbf{U}_1\), and \(\mathbf{U}_2\).

Independent orbital rotations for spin-up and spin-down

The definitions given above assume that the same orbital rotation applies to both the spin-up and spin-down orbitals. However, it is possible for each spin sector to have an independent orbital rotation, in which case a pair of unitary matrices \((\mathbf{U}^\alpha, \mathbf{U}^\beta)\) needs to be specified. Letting \(\mathbf{K}^\sigma = \log(\mathbf{U}^\sigma)\), the definitions above then become

\[\begin{split}\begin{align*} \mathcal{U} a^\dagger_{\sigma, i} \mathcal{U}^\dagger &= \sum_j \mathbf{U}^{\sigma}_{ji} a^\dagger_{\sigma, j}, \\ \mathcal{U} &= \prod_{\sigma} \exp\left[\sum_{ij} \log\left(\mathbf{U}^{\sigma}\right)_{ij} a^\dagger_{\sigma, i} a_{\sigma, j}\right]. \end{align*}\end{split}\]

Application to time evolution by a quadratic Hamiltonian

A quadratic Hamiltonian is an operator of the form (here we restrict the definition to Hamiltonians with particle number and spin Z symmetry)

\[\mathcal{M} = \sum_{\sigma, ij} \mathbf{M}_{ij} a^\dagger_{\sigma, i} a_{\sigma, j}\]

where \(\mathbf{M}\) is a Hermitian matrix. Time evolution by this Hamiltonian is given by the operator \(e^{-i \mathcal{M} t}\), where \(t\) is the evolution time. Orbital rotations can be used to implement time evolution by a quadratic Hamiltonian using two different methods.

Method 1: Diagonalize the quadratic Hamiltonian

A quadratic Hamiltonian can always be rewritten as

\[\mathcal{M} = \mathcal{U} \left(\sum_{\sigma, i} \lambda_i n_{\sigma, i}\right)\mathcal{U}^\dagger\]

where the \(\set{\lambda_i}\) are real numbers called orbital energies, \(\mathcal{U}\) is an orbital rotation, and \(n_{\sigma, i} = a^\dagger_{\sigma, i} a_{\sigma, i}\) is the occupation number operator. The \(\set{\lambda_i}\) and the unitary matrix \(\mathbf{U}\) describing the orbital rotation are obtained from an eigendecomposition of \(\mathbf{M}\):

\[\mathbf{M}_{ij} = \sum_k \lambda_k \mathbf{U}_{ik} \mathbf{U}_{jk}^*.\]

Time evolution by \(\mathcal{M}\) can be implemented with the following steps:

  • Compute the orbital energies \(\set{\lambda_i}\) and the orbital rotation matrix \(\mathbf{U}\) by performing an eigendecomposition of \(\mathbf{M}\).

  • Perform the orbital rotation \(\mathcal{U}^\dagger\), which corresponds to the matrix \(\mathbf{U}^\dagger\).

  • Perform time evolution by the operator \(\sum_{\sigma, i} \lambda_i n_{\sigma, i}\).

  • Perform the orbital rotation \(\mathcal{U}^\dagger\), which corresponds to the matrix \(\mathbf{U}\).

Method 2: Implement directly as an orbital rotation

Reviewing the definition of an orbital rotation, we can see that the time evolution operator \(e^{-i \mathcal{M} t}\) is itself an orbital rotation defined by \(\mathbf{K} = -i \mathbf{M} t\), or \(\mathbf{U} = e^{-i \mathbf{M} t}\). Thus, the time evolution operator can be implemented directly as an orbital rotation.

The following code cell demonstrates the equivalence of the two methods by applying them to a randomly generated state vector and checking that the result is the same in both cases.

[1]:
import numpy as np
import scipy.linalg

import ffsim

rng = np.random.default_rng(12345)
norb = 6
nelec = (3, 3)

# Generate a random Hermitian matrix M to represent the quadratic Hamiltonian
mat = ffsim.random.random_hermitian(norb, seed=rng)

# Generate a random state vector and set the evolution time
vec = ffsim.random.random_state_vector(ffsim.dim(norb, nelec), seed=rng)
time = 1.0

# Apply time evolution via diagonalization
eigs, orbital_rotation = scipy.linalg.eigh(mat)
result1 = ffsim.apply_num_op_sum_evolution(
    vec, eigs, time=time, norb=norb, nelec=nelec, orbital_rotation=orbital_rotation
)

# Apply time evolution directly as an orbital rotation
evolution_mat = scipy.linalg.expm(-1j * time * mat)
result2 = ffsim.apply_orbital_rotation(vec, evolution_mat, norb=norb, nelec=nelec)

# Check that the results match
np.testing.assert_allclose(result1, result2)

Quantum circuit implementation

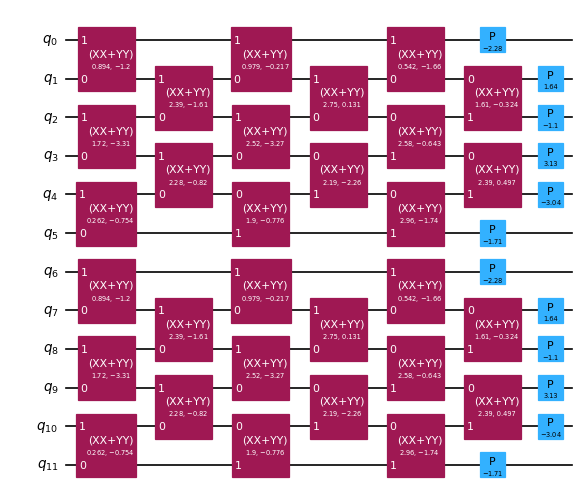

An orbital rotation can be implemented as a quantum circuit by decomposing it into Givens rotations. Under the Jordan-Wigner transformation, the circuit can be implemented as a dense brickwork pattern of two-qubit rotations, followed by a single layer of single-qubit phase gates. The following code cell constructs and displays a Qiskit circuit for implementing an orbital rotation. Notice that the circuit consists of two independent sub-circuits acting on each spin sector.

[2]:
from qiskit.circuit import QuantumCircuit, QuantumRegister

norb = 6
nelec = (3, 3)

# Generate a random orbital rotation
orbital_rotation = ffsim.random.random_unitary(norb, seed=rng)

# Create a quantum circuit that implements this orbital rotation
qubits = QuantumRegister(2 * norb, name="q")
circuit = QuantumCircuit(qubits)
circuit.append(ffsim.qiskit.OrbitalRotationJW(norb, orbital_rotation), qubits)

# Decompose the orbital rotation into basic gates before drawing
circuit.decompose().draw("mpl", scale=0.6)
[2]:
../_images/explanations_orbital-rotation_3_0.png

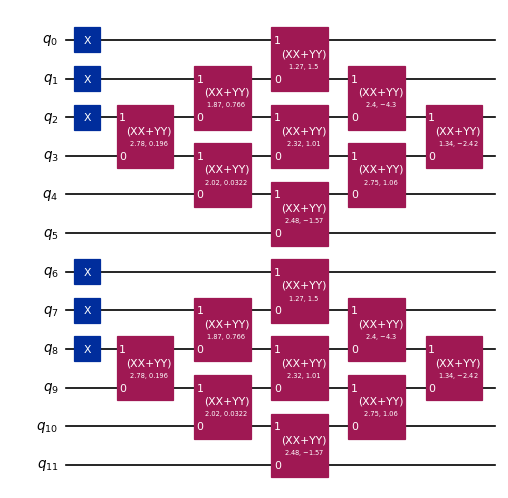

When an orbital rotation is applied to a single electronic configuration (in the qubit picture, a computational basis state), the quantum circuit implementation can be optimized to use fewer gates, resulting in a “diamond” pattern of gates rather than a dense “brickwork” pattern. For additional information, see this paper.

The following code cell constructs and displays an example of the optimized circuit.

[3]:
# Create a quantum circuit that applies an orbital rotation to the Hartree-Fock state
circuit = QuantumCircuit(qubits)
circuit.append(ffsim.qiskit.PrepareHartreeFockJW(norb, nelec), qubits)
circuit.append(ffsim.qiskit.OrbitalRotationJW(norb, orbital_rotation), qubits)

# Optimize the orbital rotation circuit
circuit = ffsim.qiskit.PRE_INIT.run(circuit)

# Decompose the orbital rotation into basic gates before drawing
circuit.decompose().draw("mpl", scale=0.6)
[3]:
../_images/explanations_orbital-rotation_5_0.png
