QProfiler Tutorial

This tutorial demonstrates how to use QProfiler to benchmark machine learning models and analyze data complexity.

What is QProfiler?

QProfiler is an automated ML benchmarking tool that provides:

• Model Performance Evaluation: Tests both classical and quantum ML algorithms

• Data Complexity Analysis: Computes 15+ intrinsic dataset characteristics

• Correlation Analysis: Links model performance to data properties

• Automated Workflows: Handles data splitting, scaling, and evaluation

1. Setup and Imports

import sys
import os
import re
import pandas as pd

# Import QBioCode
import qbiocode as qbc

# For running QProfiler
import yaml

<env>/lib/python3.12/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

2. Generate Test Data

We’ll create simple artificial datasets to demonstrate QProfiler’s capabilities.

type_of_data = 'classes'

N_SAMPLES = [100]
N_FEATURES = [10]
N_INFORMATIVE = [2]
N_REDUNDANT = [2]
N_CLASSES = [2]
N_CLUSTERS_PER_CLASS = [2]
WEIGHTS = [[0.3, 0.7], [0.4, 0.6], [0.5, 0.5]]

qbc.generate_data(
    type_of_data=type_of_data,
    save_path=os.path.join('data', 'ld_data'),
    n_samples=N_SAMPLES,
    n_features=N_FEATURES,
    n_informative=N_INFORMATIVE,
    n_redundant=N_REDUNDANT,
    n_classes=N_CLASSES,
    n_clusters_per_class=N_CLUSTERS_PER_CLASS,
    weights=WEIGHTS,
    random_state=42
)

print(f"Generated {len(WEIGHTS)} datasets in data/ld_data/")

Generating classes dataset...
Dataset generation complete.
Generated 3 datasets in data/ld_data/

3. Configure QProfiler

QProfiler uses a YAML configuration file (configs/config.yaml) to specify:

• Data directories

• Models to test (RF, SVC, LR, DT, NB, MLP, QSVC, PQK, VQC, QNN)

• Embeddings (none, pca, lle, isomap, spectral, umap, nmf)

• Output settings

4. Run QProfiler

Option 1: Command Line

qprofiler --config configs/config.yaml

Option 2: Python API

# Load configuration
config = yaml.safe_load(open('configs/config.yaml', 'r'))

# Import QProfiler
from qbiocode.apps.qprofiler import qprofiler as profiler

# Run QProfiler
profiler.main(config)

print("QProfiler execution complete!")
print("Results saved to:")
print("  - ModelResults.csv")
print("  - RawDataEvaluation.csv")

Processing file: class_data-1.csv
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
Processing file: class_data-2.csv
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
Processing file: class_data-3.csv
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
at datapoint 0
QProfiler execution complete!
Results saved to:
  - ModelResults.csv
  - RawDataEvaluation.csv

5. Analyze Results

QProfiler generates two main output files:

1. ModelResults.csv: Performance metrics (accuracy, F1-score, AUC, etc.)

2. RawDataEvaluation.csv: Data complexity metrics

# Load model results
model_results = pd.read_csv('ModelResults.csv')
print("Model Performance Results:")
print(model_results[['model', 'accuracy', 'f1_score', 'auc']].head())

# Load data complexity metrics
data_eval = pd.read_csv('RawDataEvaluation.csv')
print("\nData Complexity Metrics:")
print(data_eval.columns.tolist())

Model Performance Results:
  model  accuracy  f1_score       auc
0    dt  0.966667  0.967137  0.976190
1    lr  0.933333  0.930682  0.888889
2   mlp  0.966667  0.966074  0.944444
3    nb  0.900000  0.898222  0.865079
4   pqk  0.900000  0.898222  0.865079

Data Complexity Metrics:
['Dataset', '# Features', '# Samples', 'Feature_Samples_ratio', 'Intrinsic_Dimension', 'Condition number', 'Fisher Discriminant Ratio', 'Total Correlations', 'Mutual information', '# Non-zero entries', '# Low variance features', 'Variation', 'std_var', 'Coefficient of Variation %', 'std_co_of_v', 'Skewness', 'std_skew', 'Kurtosis', 'std_kurt', 'Mean Log Kernel Density', 'Isomap Reconstruction Error', 'Fractal dimension', 'Entropy', 'std_entropy']

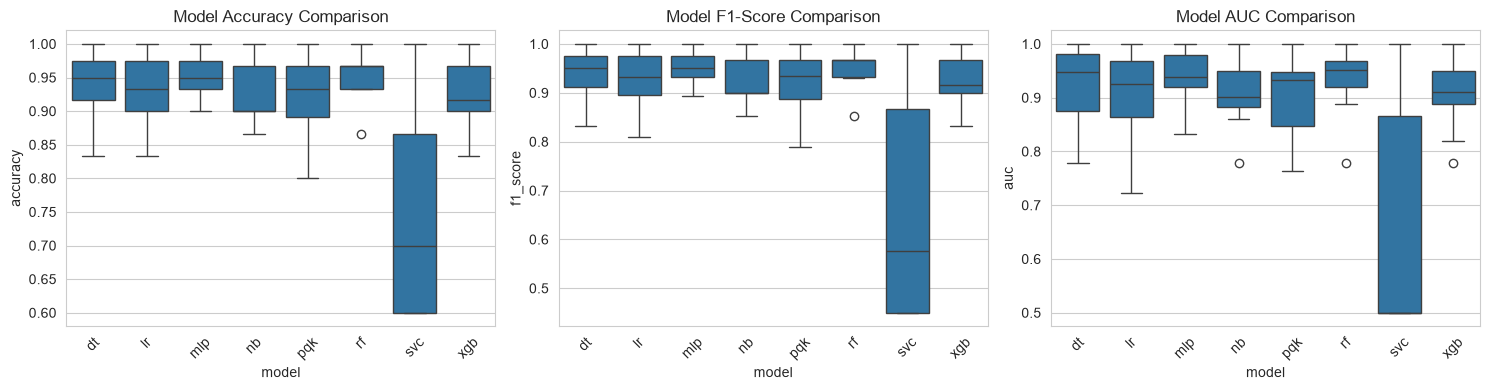

6. Visualize Results

import matplotlib.pyplot as plt
import seaborn as sns

# Set style
sns.set_style("whitegrid")

# Plot model comparison
fig, axes = plt.subplots(1, 3, figsize=(15, 4))

# Accuracy comparison
sns.boxplot(data=model_results, x='model', y='accuracy', ax=axes[0])
axes[0].set_title('Model Accuracy Comparison')
axes[0].tick_params(axis='x', rotation=45)

# F1-score comparison
sns.boxplot(data=model_results, x='model', y='f1_score', ax=axes[1])
axes[1].set_title('Model F1-Score Comparison')
axes[1].tick_params(axis='x', rotation=45)

# AUC comparison
sns.boxplot(data=model_results, x='model', y='auc', ax=axes[2])
axes[2].set_title('Model AUC Comparison')
axes[2].tick_params(axis='x', rotation=45)

plt.tight_layout()
plt.show()

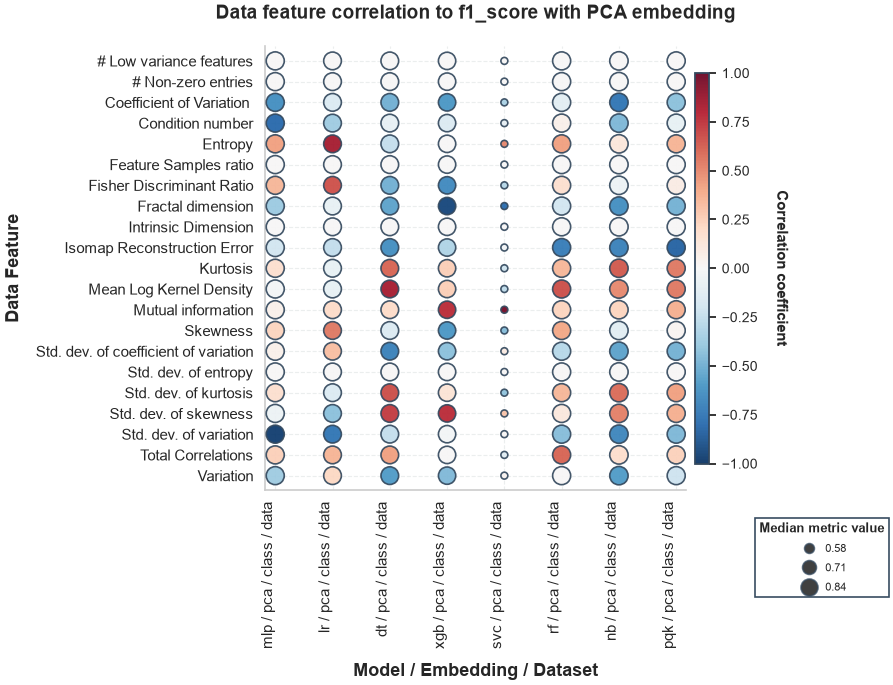

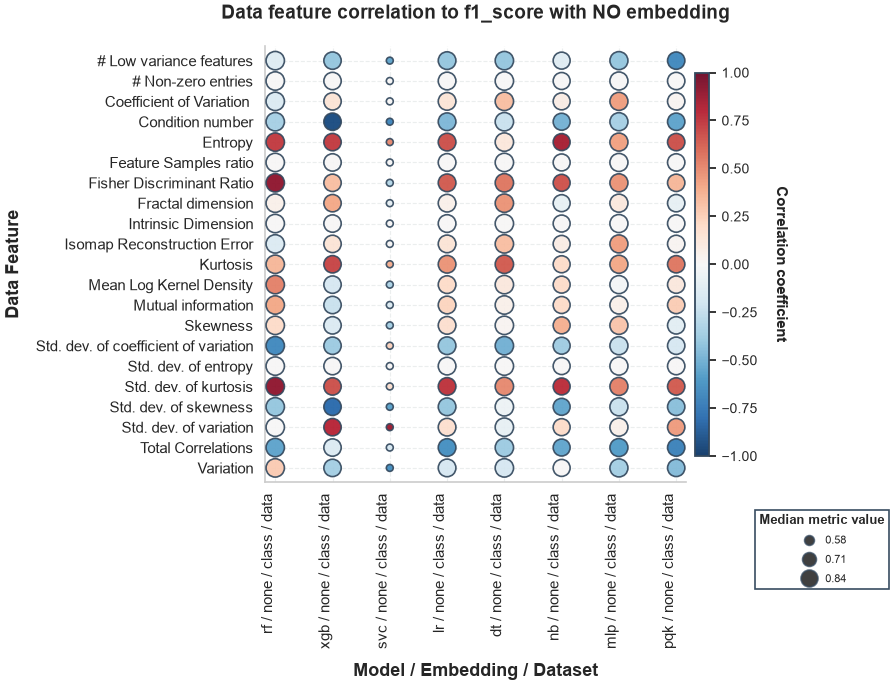

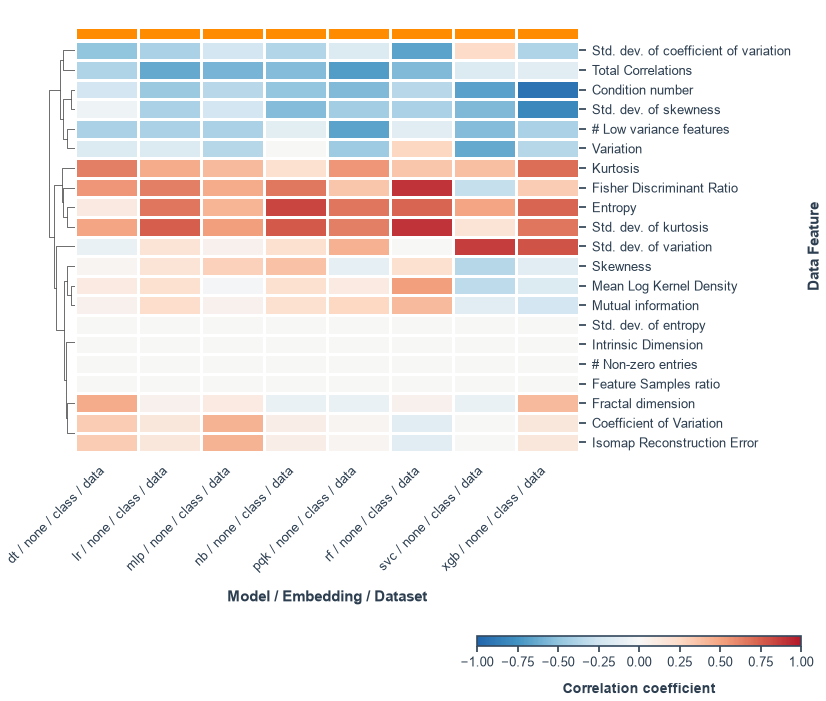

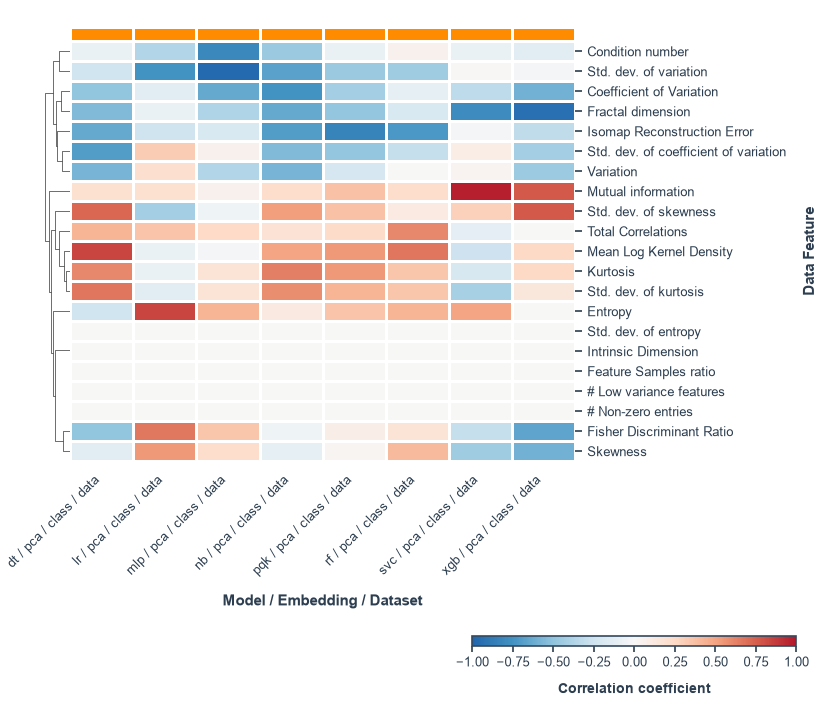

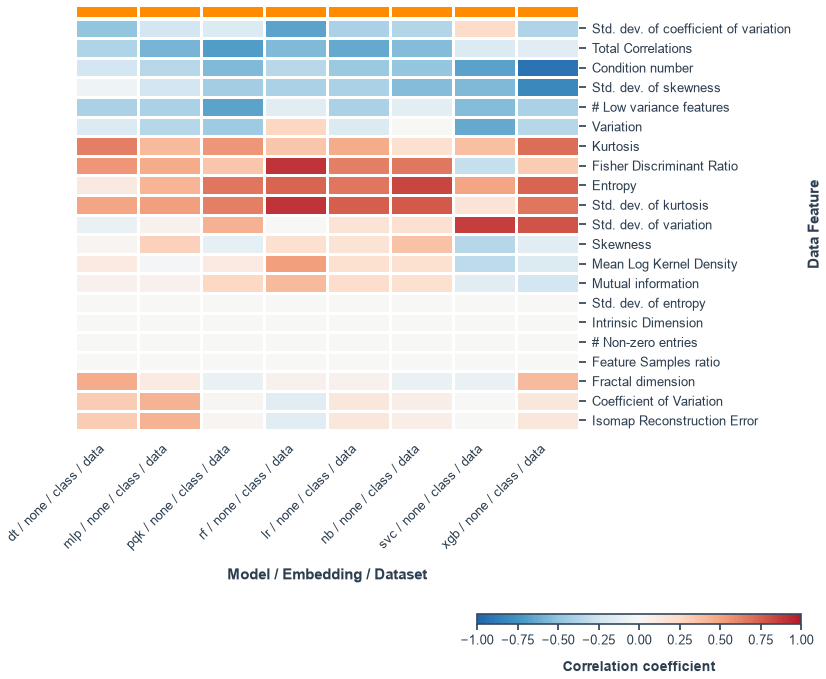

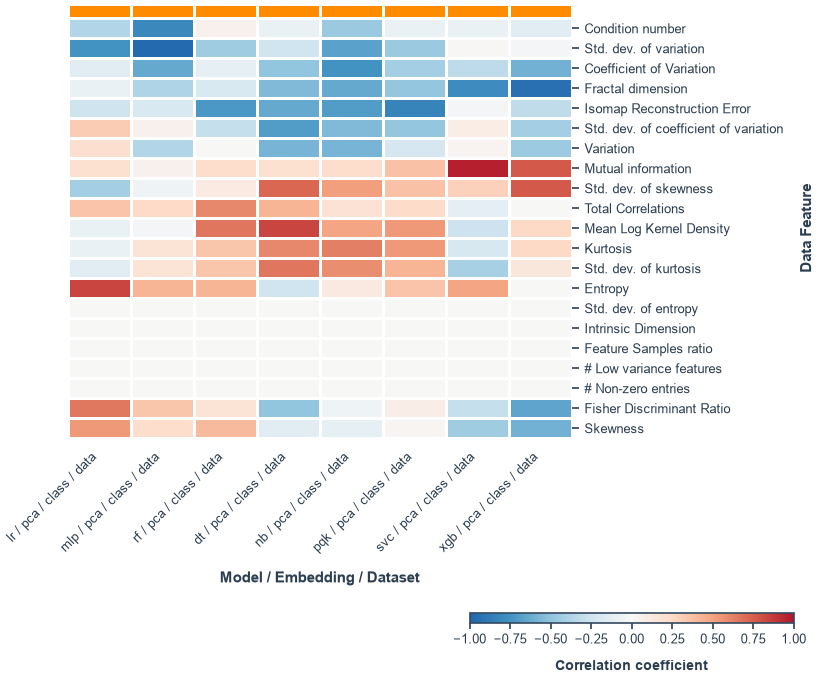

7. Correlation Analysis

Analyze correlations between data complexity metrics and model performance for all embedding types.

# Use compiled results if available, otherwise use current results
compiled = pd.read_csv('ModelResults.csv')

# Compute correlation
_, correlation_spearman_df = qbc.compute_results_correlation(
    results_df=compiled,
    correlation='spearman',
    thresh=0.7
)

# Get unique embedding types from the data
unique_embeddings = compiled['embeddings'].unique()
print(f"Found {len(unique_embeddings)} unique embedding types: {list(unique_embeddings)}")

# Plot correlation for each embedding type
figsize = (9, 7)
metrics = ['f1_score']  # Can add more: ['f1_score', 'accuracy', 'auc']

for m in metrics:
    for embedding in unique_embeddings:
        # Filter data for this embedding type
        embedding_data = correlation_spearman_df[
            correlation_spearman_df['model_embed_datatype'].str.contains(f'_{embedding}_')
        ]

        if len(embedding_data) > 0:
            # Create title based on embedding type
            if embedding == 'none':
                title = f'Data feature correlation to {m} with NO embedding'
            else:
                title = f'Data feature correlation to {m} with {embedding.upper()} embedding'

            # Plot correlation
            qbc.plot_results_correlation(
                embedding_data,
                metric=m,
                title=title,
                correlation_type=f'Color: Spearman;\nSize: {m}',
                size='median_metric',
                figsize=figsize
            )
        else:
            print(f"No data found for embedding: {embedding}")

Found 2 unique embedding types: ['none', 'pca']

8. Understanding Data Complexity Metrics

Geometric Properties:

• Intrinsic Dimension: True dimensionality of data

• Fractal Dimension: Measures self-similarity and complexity

Statistical Properties:

• Variance: Data spread across features

• Skewness: Distribution asymmetry

• Kurtosis: Tail heaviness

Separability Measures:

• Fisher Discriminant Ratio: Class separability (higher = more separable)

• Mutual Information: Feature-label dependence

# Examine data complexity
print("Data Complexity Summary:")
print(data_eval[[
    'Dataset',
    'Intrinsic_Dimension',
    'Fractal dimension',
    'Fisher Discriminant Ratio'
]].head())

Data Complexity Summary:
            Dataset  Intrinsic_Dimension  Fractal dimension  \
0  class_data-1.csv                    8           1.997569
1  class_data-2.csv                    8           1.997571
2  class_data-3.csv                    8           1.997572

   Fisher Discriminant Ratio
0                   0.413257
1                   0.470445
2                   0.500925

Summary

In this tutorial, you learned how to:

1. ✅ Generate artificial datasets for testing

2. ✅ Configure QProfiler with YAML files

3. ✅ Run QProfiler to benchmark multiple ML models

4. ✅ Analyze model performance results

5. ✅ Visualize and compare model performance

6. ✅ Understand data complexity metrics

7. ✅ Correlate data properties with model performance across all embeddings

Next Steps

• Try different datasets: Use your own data or generate more complex artificial datasets

• Experiment with embeddings: Test different dimensionality reduction methods

• Quantum models: If you have access to quantum hardware, try QSVC, PQK, VQC

• Batch processing: Run QProfiler on multiple datasets using bash loops or SLURM

• Use with QSage: Compile results and train QSage for model recommendations

See Also

• QProfiler Documentation - Full configuration reference

• QSage Tutorial - Use compiled results for meta-learning

• Data Generation Tutorial - Create more datasets
